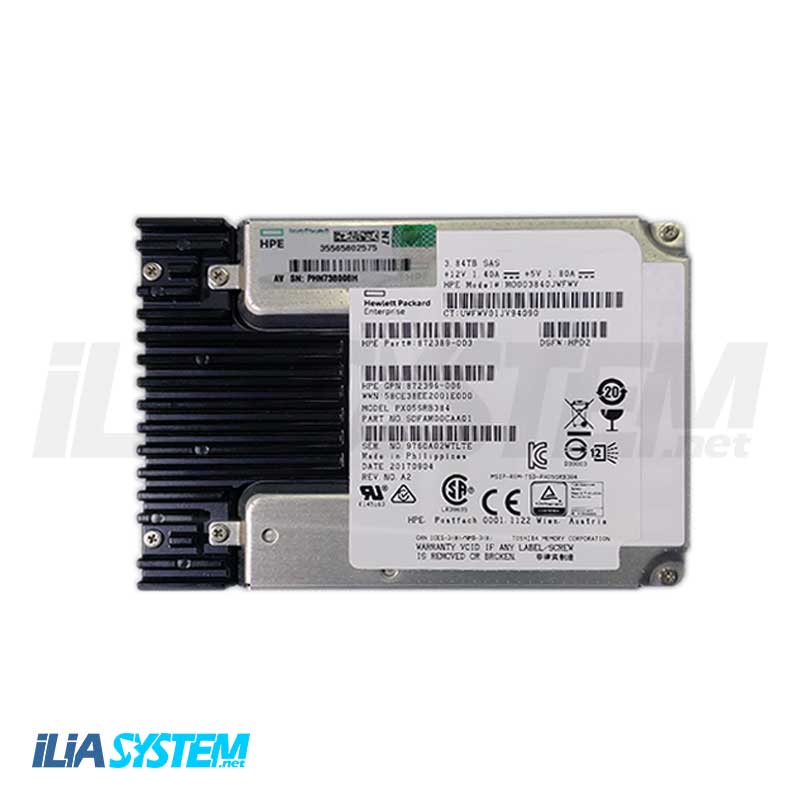

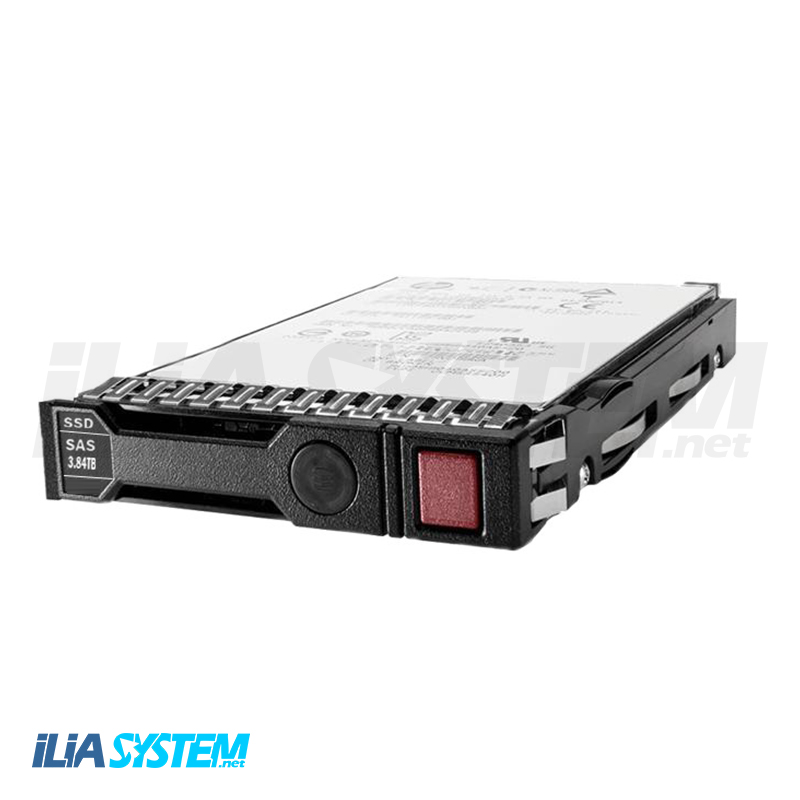

HPE 872389-003-SC 3.84TB 2.5inch SFF MLC Digitally Signed Firmware SAS-12Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen9 Gen10 Servers (New Bulk Pack With 90 Days Warranty)
HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPs performance. HPE (RI) SSDs typically have an endurance of <1 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.
High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications and data warehousing. Achieve higher IOPs hto enhance the performance of your data center. Maintain data accuracy with full data-path error detection. Choose from a broad portfolio of enhanced solutions in capacities up to 3.84 TB and growing. 12 Gb SAS, 6 Gb SATA, NVMe, M.2, and M.2 enablement kits.
Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.
Smart Carriers
HPE Solid State Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.
Provides simplicity and lower total cost of ownership
HPE solid state drives deliver reduced power consumption, providing improved IOPS/W versus rotating media while reducing datacenter cooling costs.
Increases the efficiency of your server
HPE SSDs allow you to get the most out of your server with more compute per watt with SSDs. Uses self-describing LEDs that reduce drive activity confusion.
Accelerate workload performance
HPE SSDs achieve higher IOPs to enhance the performance of your data center and give you faster access to data with excellent latency.
Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.
HPE solid state drives offer the speed, flexibility and expandability to meet your growing storage capacity requirements. The HPE 872389-003-SC Read Intensive Solid State Drive has a 2.5 inch form factor and a 12 Gbps external data transfer rate. It has a 3.84 TB capacity. This Small Form Factor Digitally Signed Firmware (DS) solid state drive uses a SAS-12Gbps interface and has 90 Days Warranty.
Specifications
Brand: HPE
MPN: 872389-003-SC
Option Part Number: 872394-B21
Spare Part Number: 872434-001
Model Number: MO003840JWFWV
Assembly Number: 872389-003
HPE GPN: 872396-006
General
Device Type: Solid State Drive - Hot-Swap
Capacity: 3.84 TB
Workload Type: Read Intensive
Interface Type: SAS 12Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Plug
Carrier Type: Smart Carrier
NAND Flash Memory Type: Multi-Level Cell (MLC)
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive Carrier
Height: 15 mm
Performance
30 Days Writes: 7008
Endurance DWPD (Drive Writes Per Day): 1
Drive Transfer Rate: 1.2 GBps (external)
MAX Seq. Reads Throughput (MiB/s): 1070
MAX Seq. Writes Throughput (MiB/s): 1025
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 50
Random Read IOPS (4KiB, Q=16): 125000
Random Write IOPS (4KiB, Q=16): 34000
MAX Random Read IOPS (4KiB): 185000@Q32
MAX Random Write IOPS (4KiB): 34000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 75000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 60000
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF
Power Consumption
Power Idle Time: 4.22 Watt
Power Random Read: 4.74 Watt
Power Random Write: 4.74 Watt
Power Sequential Read: 7.75 Watt
Power Sequential Write: 9.50 Watt
Power Random R/W: 4.74 Watt
Compatibility Information
Designed for
HPE ProLiant DL Series: DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch) Servers
HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch) Servers
HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL450 Gen10 (2.5 inch) Servers
